STAS picture clip set

PC10100 STAS picture clip set

With the help of this STAS picture clip hanging set you can attach a hanging system to your frame yourself. The advantage of this set is that your frame hangs nice and straight and does not lean forward; frames are adjustable in height and can be hung level side by side or beneath one another.

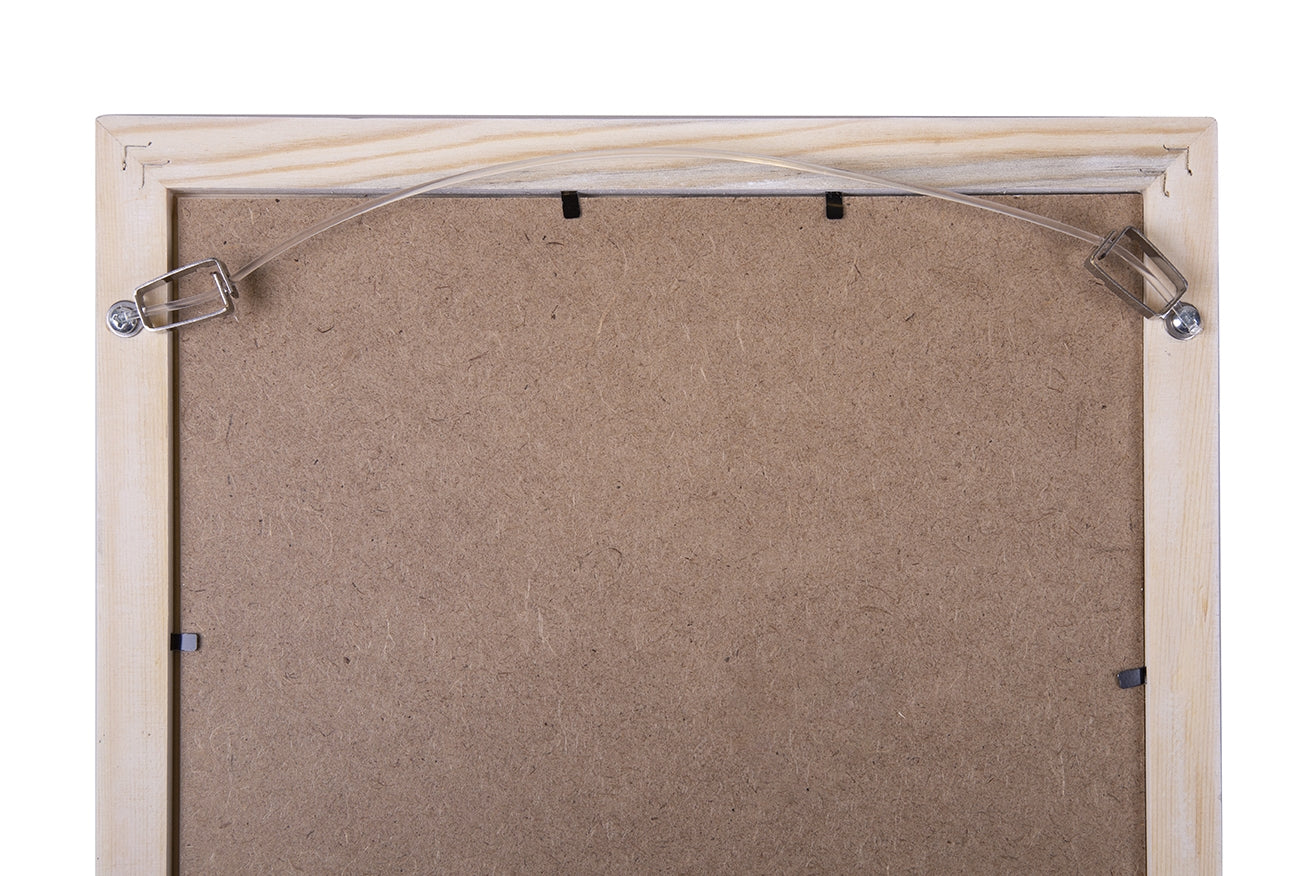

For wooden frames: Screw the two picture clips at about 1/3 from the top into the frame on both sides of your frame with the supplied screws. Do not screw them too tight, the picture clips must be able to pivot. Squeeze the picture clip and push the perlon cord through it on both sides. Leave the cord long enough to hang the frame properly, the rest you can roll up behind the frame or cut off. The frame is now adjustable in height. You can then hang it on the STAS hook of your choice using the cord.

For aluminium frames: Free the thin wooden backing panel from the aluminium frame. Drill 2 holes of 4mm in the backing panel at about 1/3 from the top of the frame. Push the hollow rivet through the drill hole and attach the picture clip to it, place the snap rivet onto the hollow rivet. Strike the snap rivet with a hammer and the picture clip is fixed. When hammering, ensure a hard, flat surface. Do not strike the picture clip too tight, it must be able to pivot. Squeeze the picture clip and push the perlon cord through, the picture is now adjustable in height.

Multiple frames beneath one another: Determine the midpoint of the long perlon cord. Push the cord through the picture clips of the top frame. Hang the top frame and make sure the cord does not stick out above the frame, the 2 long ends stick out below the frame. Lay the top frame on the table and the rest in the desired order and push the cords through the picture clips (available to order separately) that are mounted on the frames below. Now hang the interconnected frames on the wall.

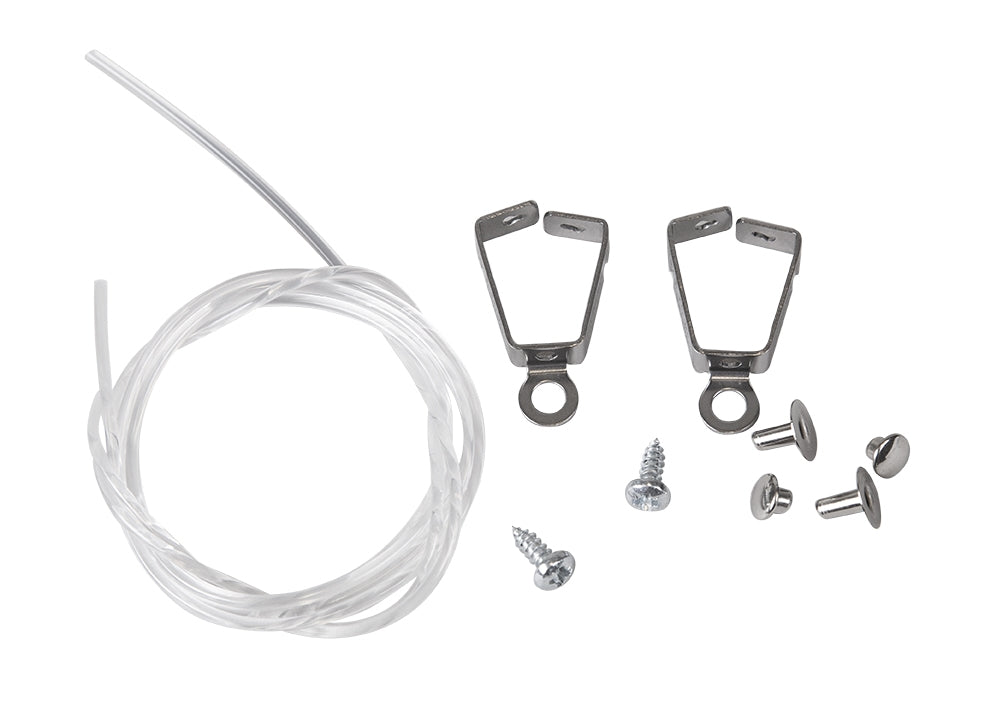

Contents:
2 picture clips
1 perlon cord 100cm
2 screws
2 snap rivets
2 hollow rivets
